Auto Transformers: A Compact Power Solution


Auto Transformers: A Compact Power Solution
1. Introduction to Auto Transformers
An auto transformer is a type of electrical transformer that operates with a single continuous winding rather than two separate ones. The name "auto" comes from the Greek word for "self," indicating that it uses part of the same winding for both the input and output sides. This unique construction sets it apart from traditional two-winding transformers and makes it especially suitable for voltage regulation and other practical applications.
2. Construction and Basic Design
Unlike conventional transformers that have distinct primary and secondary coils, an auto transformer consists of one winding with at least three electrical connection points (taps). These taps divide the winding into two sections: the portion common to both input and output, and the portion exclusive to either side. This simple design makes the transformer smaller, lighter, and more cost-effective.
3. Working Principle
The auto transformer functions on the principle of electromagnetic induction, like all transformers. However, it also directly transfers a portion of electrical power via conduction, through the common winding. This means only a part of the power is transferred inductively, while the rest flows directly between input and output. This hybrid method of energy transfer leads to improved efficiency.
4. Voltage Adjustment Using Taps
Voltage regulation in an auto transformer is achieved using taps on the winding. By selecting different points along the coil, the output voltage can be either stepped up or stepped down in proportion to the input voltage. This tap-changing feature is ideal for applications requiring fine voltage control, such as in laboratory equipment, power supplies, and motor starting systems.
5. Electrical Connectivity
One of the defining characteristics of an auto transformer is that the primary and secondary circuits are electrically connected, not isolated. This connection allows for compact design and efficient operation, but it also introduces potential risks if the output circuit experiences a fault, as it can affect the input side directly.
6. No Electrical Isolation
Due to the shared winding, galvanic isolation (i.e., electrical separation) between the primary and secondary is not provided. This is in contrast to traditional transformers that provide isolation as a key feature. In some sensitive or high-voltage systems, this lack of isolation may be a drawback, especially from a safety perspective.

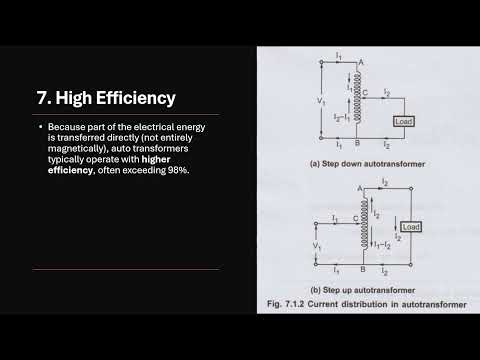

7. High Efficiency
Because part of the electrical energy is transferred directly (not entirely magnetically), auto transformers typically operate with higher efficiency, often exceeding 98%. Reduced losses in the magnetic core and winding resistance make them ideal for continuous-duty applications that demand energy efficiency.
8. Reduced Size and Weight
One of the major benefits of the auto transformer is its compact form factor. With only one winding, less copper wire and core material are needed. This results in a smaller and lighter transformer, which is easier to install, especially in space-constrained areas like panels, enclosures, or portable equipment.
9. Cost Benefits
Thanks to the reduction in materials and simplified construction, auto transformers are cheaper to manufacture than traditional transformers. This lower cost makes them a preferred choice in commercial and industrial settings where voltage regulation is required, but full isolation is not critical.
10. Common Applications
Auto transformers are used in a wide range of applications. In motor starting, they help reduce the starting current to prevent electrical and mechanical stress. In power distribution systems, they help regulate voltage levels. They are also found in audio systems, variable voltage power supplies, and testing labs where controlled voltage is essential.
11. Limitations and Safety Concerns
Despite their advantages, auto transformers have limitations. The lack of isolation means that any fault on the output side may be transferred back to the input. This can be dangerous in sensitive environments or where safety isolation is required. Proper grounding and protective devices are essential when using auto transformers.
12. Conclusion
In summary, auto transformers offer a versatile, efficient, and cost-effective solution for voltage regulation and power conversion. While they are not suitable for all situations, especially where isolation is necessary, their compact size, high efficiency, and economic value make them a valuable component in many electrical systems. Proper application and safety considerations are essential to take full advantage of their benefits.
